Now Let's Finally Fix the Odometer (cont.)

OK, let us continue from the last post. Now that we have remove the instrument cluster safely, bring it in-door, and;


B) Fix the gear!

1) Unscrew 7 philips screw as marked on above picture. After that, you could lift the board up from the black housing. DO THIS CAREFULLY TO AVOID DAMAGE TO NEEDLES!

2) Position the board vertically. NEVER LET THE NEEDLE SURFACE DOWN/TOUCH ANYTHING. Unscrew 4 philips screw as above picture. This will enable us to take-out the speedometer/odometer assy;

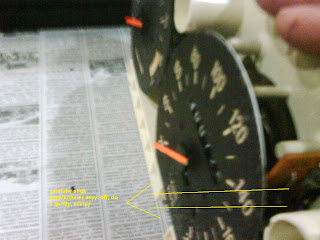

3) Lift out the speedometer by putting your hands on the speedo plate and lift it out horizontally, AGAIN SLOWLY;

4) You will see this motor attached on the backside of the speedo plate. Unscrew these 2 flat type screws; after that you'll be able to lift out the brown circuit board. JUST LIFT IT OUT, DON'T DISCONNECT IT. This is enough to expose inside gears;

5) From above picture (credit to Eric's), you'll find that for odometer, there are 2 main gears; a small and a big gear. More often than not, the smaller gear is always the culprit (with missing teeth). Inspect them and replace whichever necessary.

I did changed the small gear in 2004 with a local-machined gears and it works fine still after 5 years. Just recently I found the bigger gear is the culprit. Changed it, reinstall back (reinstallation is just reverse of removal) and yeah now the odometer keep on running!

Happy trying & Good Luck!

p/s - DIY at your own risk.. this article is for info sharing and should not be liable for any 'incidents' encountered during your DIY session. good day all!

Tuesday, October 20, 2009

Let's Fix the Odometer!

Hi guys, this post will be a long one with pictures and instructions. The odometer stopped working; whereas I have changed one of the gear last 4 years until it stopped again now. Let's go straight from how to remove the cluster, open it, and replace the gear which always the culprit.

But before that, you might want to read my earlier post on check you should do if your odometer/speedometer does not function before opening-out the instrument cluster. OK straight to the steps;


A) Removing The Instrument Cluster

1)Remove the dimmer adjuster knob gently, it might be a little tight;

2) Likewise, remove the headlamp switch knob;

3) Gently slide off (towards you) the trim;

4) Pry off the black trim (behind the knobs);

5) Detach the black panel, just let it hang out, no need to detach the wires;

6) Pry off black trim around the clock;

7) Pry off the black trim below clock panel;

8) At RHS of the cluster, unscrew 2x Philips screws, and remove the black metal panel;

9) Likewise, at LHS of the instrument cluster, unscrew 2x Philips screws;

10) Then you are ready to slide-off the instrument cluster; don't be clumsy/rushing, take it off front 'front', using both hand on RHS & LHS of the cluster, and pull it forward gently; You may want to detach horn cover on the steering column (CAR WITH AIRBAG REQUIRE ADDITIONAL STEPS TO DETACH STEERING COVER);

11) From back end of the cluster, remove wires as mentioned in above pictures; again be gentle, it might be hard to detach especially for the first time; then you are ready to bring the cluster indoor...

to be continued...
